October 19, 2020 NHTSA CAMPAIGN NUMBER: 20V646000
Exhaust Studs and Nuts may be Loose
Loose exhaust mounting can result in hot exhaust gases leaking, increasing the risk of a fire.
NHTSA Campaign Number: 20V646
Manufacturer Mitsubishi Fuso Truck of America, Inc.
Components ENGINE AND ENGINE COOLING
Potential Number of Units Affected 4,294
Summary
Mitsubishi Fuso Truck of America, Inc. (MFTA) is recalling certain 2019-2021 FEC7T, FECZT, FEC9T vehicles. The exhaust pipe studs and nuts may not have been properly tightened.
Remedy
MFTA will notify owners, and dealers will tighten the exhaust studs and nuts to the correct torque specification. The recall began December 11, 2020. Owners may contact MFTA customer service at 1-877-711-0707. MFTA’s number for this recall is C10114.
Notes
Owners may also contact the National Highway Traffic Safety Administration Vehicle Safety Hotline at 1-888-327-4236 (TTY 1-800-424-9153), or go to www.safercar.gov.
SUBJECT:
Safety Recall C10114 – Exhaust Studs
MODELS:
FECZT (FE140), FEC7T (FE160), FEC9T(FE180)
VEHICLES INVOLVED:
Certain 2019-2021 model year FECZT, FEC7T, and FEC9T trucks.
A list of vehicles your Dealership has sold that require this Recall can be found on the Dealer’s “Open Campaigns” list supplied by MFTA via Fusonet. Some individual vehicles described above may not need the Recall as the repairs may have already been performed. Always check the “VIN Inquiry” tab under “Service” or “Warranty” on Fusonet to verify that the VIN requires this Safety Recall.
Important note: It is a violation of Federal law for a dealer to deliver a new or used motor vehicle covered by this Recall Information Bulletin, under a sale or lease, until the Safety Recall has been completed.
OWNER NOTIFICATION:
Owners of affected vehicles will be notified by mail.
CONDITION:
Mitsubishi Fuso Truck of America, Inc. has decided that a defect, which relates to motor vehicle safety, exists in the rocker arms on certain 2019-2021 model year FECZT (FE140), FEC7T (FE160) and FEC9T(FE180) Mitsubishi Fuso trucks. On certain trucks, the exhaust pipe studs and nuts may not have been properly tightened. As a result, the exhaust pipe connection could loosen over time and create an exhaust leak in the engine compartment. An exhaust leak in the engine compartment could damage components and create the risk of a fire.
MODIFICATION:
The exhaust studs will be tightened to the proper torque specification, the exhaust flange gaskets will be replaced along with any damaged studs or nuts.
REPAIR PROCEDURE:
1. Park the vehicle on a flat, level surface, turn off the engine and chock the wheels.
CAUTION! Do not remove the wheel chocks until all modification work has been completed.
2. Tighten the exhaust studs using instructions found in the Modification Procedure on the next page.
3. After reassembly, confirm that there are no leaks.
Modification Procedure
1. Remove the exhaust hanger bolts (Red Arrows) and exhaust flange nuts (Green Arrows) and disconnect the O2 sensor connectors (Blue Arrows).
2. Remove the front exhaust pipes from the exhaust manifold flanges by lowering the complete exhaust system down as shown in the photo below left. Remove the gaskets from the studs as shown in the photo below right.
3. Tighten all of the exhaust studs fully into the exhaust manifold flanges. *If any of the studs or nuts cannot be reused due to damage, replace them with OEM studs (ML296164) and nuts (ML296165).
4. Install new gaskets (ML296166 and ML296167) on the manifold flanges and connect the exhaust front pipes.
5. Reinstall the nuts on the studs and tighten to 44 +/- 3.7 ft.lbs. (60 Nm +/- 5 Nm).
9 Affected Products
Vehicles
| MAKE | MODEL | YEAR |
| MITSUBISHI FUSO | FEC7T | 2019-2021 |
| MITSUBISHI FUSO | FEC9T | 2019-2021 |
| MITSUBISHI FUSO | FECZT | 2019-2021 |
10 Associated Documents
Recall Quarterly Report #3, 2021-2
RCLQRT-20V646-8748.PDF 211.351KB
Loading...
Reload document
Open in new tab
Safety Bulletin
RCSB-20V646-5328.pdf 229.479KB
Loading...
Safety Bulletin
RCSB-20V646-6659.pdf 363.355KB
Loading...
Recall 573 Report- Amendment 2
RCLRPT-20V646-3671.PDF 215.057KB
Loading...
Recall 573 Report- Amendment 1
RCLRPT-20V646-1311.PDF 215.058KB
Loading...
Recall Quarterly Report #2, 2021-1
RCLQRT-20V646-5644.PDF 211.262KB
Loading...
Recall Acknowledgement
RCAK-20V646-3387.pdf 244.566KB
Loading...
Recall Quarterly Report #1, 2020-4
RCLQRT-20V646-2002.PDF 211.156KB
Loading...
Owner Notification Letter(Part 577)
RCONL-20V646-2821.pdf 131.731KB
Loading...
Recall Quarterly Report #4, 2021-3
RCLQRT-20V646-3594.PDF 211.458KB
Loading...
Latest Recalls Documents
For the Latest and Most Recent Recalls Information Visit the link below…
https://www-odi.nhtsa.dot.gov/acms/cs/documentList.xhtml?docId=20V646&docType=RCL
- Complete SAE and metric stud Remover set offer the best professional extractors available
- Designed and tested to reach studs in difficult work areas
- Blow molded case for tool retention and durable storage
- 3/8" And 1/2" Drives included
- Auto-locking feature allows the tap adapters to be removed safely
- SPECIFICATIONS: This damaged bolt and stud extractor tool is 3/8-inch drive and can be used with manual or pneumatic impact wrenches and ratchets, quickly and easily removing damaged bolts and studs more efficiently than standard bolt extractors. This bolt extractor fits 1/4 - 1/2-inch (6 - 12mm) studs.
- DESIGN: Manufactured with high-grade heat-treated alloy steel for maximum durability, this tool also features a chrome finish for additional rust and corrosion protection, with a knurled grip for extra stability. The universal design of this bolt extractor clamps down on the damaged stud for stable and secure removal, and the hexagonal flat can also be used with flat wrenches, adjustable wrenches, sockets, and locking pliers.
- APPLICATION: Traditional bolt extractors force the user to guess the size of damaged studs, stripping damaged screws and shaving metal off without budging the fastener. This extractor eliminates guesswork by adjusting and clamping to the bolt, saving hours of frustration on broken exhaust manifolds, oil filler plugs, rounded starter bolts, low grade bolts left in saltwater, painted-over bolts, rusted tight bolts, and more.
- RELIABLE | EFFECTIVE | EFFICIENT: Users trust ARES to be quality tools that make an impact. You are backed by our Performance Assurance Limited Lifetime Warranty. If you have any issues with your ARES Damaged Bolt and Stud Extractor Tool, simply contact customer service for troubleshooting help, parts, replacement, or refund.
- ASPCA BUSINESS AMBASSADOR: We are proud to be part of the ASPCA Business Ambassador Program. If you have a pet, you realize they are more than a pet, they are part of the family. With your support, we’re proud to help this great organization."
- Allows for easy removal of studs
- Tool has two holes, 1/2 inch (14 mm) and 3/4 inch (19 mm) for optimum fit, minimizing damage to threads
- Use with 1/2 inch square drive
- Use with 1/2 inch square drive
- Package dimension is 5.25 inches width by 6.13 inches height by 2.5 inches depth
- Damaged Bolt Extractor 3/8" inch Drive.
- Easily remove stud. Allowing clamp down on damaged studs.
- This extractor tool is adjustable to fit studs that are 1/4-inch to 1/2-inch (6mm to 12mm)
- Internal: 3 Jaws Design, easy to operate, save your time.
- Easily Remove Threaded, Broken, Rusted, Stripped stud.
- Compatible with Ford 5.4L/6.8L 3v
- EZ Stud Out allows you to quickly replace broken studs with no drilling or tapping
- Removes studs in minutes
- No need to be a highly skilled technician, good for DIY
- Even removes broken studs that are recessed in cylinder head

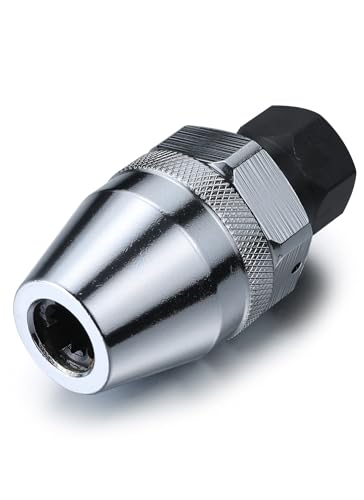

- GRIP AND REMOVE DAMAGED BOLTS: Our stud extractor is designed to grip and remove 1/4-Inch to 1/2-Inch studs, making it ideal for broken, rounded off, painted over, and rusted tight bolts.
- FITS ALL STUDS 1/4-Inch TO 1/2-Inch: With its versatile design, this stud extractor fits all studs between 1/4-Inch to 1/2-Inch (6 to 12mm), so you can tackle any job with ease.
- REACH SMALL AREAS: This tool is designed to fit into small areas, where studs may be hard to reach, making it perfect for tight spaces where other tools can't fit.
- USE WITH YOUR 3/8-Inch IMPACT GUN: Use this stud extractor on a low setting with your 3/8-Inch impact gun to remove stripped, rusted, broken, or smooth studs.
- HEX SHAFT FOR MULTIPLE USES: The hex shaft can be used with a wrench, ratchet, or impact tool and socket, making it a versatile tool for a variety of jobs.
- Compatible with Ford F150, F250, F350 4.6L, 5.4L and V-10 engines 1997-2009
- Help to remove broken manifold studs.
- Package Contents: 1 Set Exhaust Manifold Broken Stud Removal tool
- Heavy Duty Stud Master : Spurtar 1/2 inch drive stud puller, broken bolt extractor, nut remover suitable for 1/4 inch to 3/4 inch ( 6mm to 19mm ) studs from engine blocks, exhaust manifolds, cylinder heads, and other applications
- Optimum Fit Stud Extractor: Knurled roller uses cam action to grasp the stud firmly and secures optimum fit while minimizing damage to threads. Cam rotates to grip onto the stud for quick and easy use. Help easy out bolt extractor set studs quickly and efficiently
- Safe Stud Extractor Tool: Spurtar professional tools are for commercial or occasional use. Suitable for safely removing broken or seized bolts and studs. 2 holes 1/2" (14mm) and 3/4" (19mm) allow for an optimal fit and minimize thread damage
- Bolt Extractor Operation Guidance: Use with 1/2-inch drive ratchet wrench or flex handle and turn the extractor to engage the cam and stud to tighten, then turn until the stud is removed.
- Rounded bolt Remover Unique design: The design allows the tool to be flush with the mounting surface of the stud, so it can grab a stud that breaks off very close to the mounting surface.
- EFFORTLESSLY REMOVE ANY STUD: The ABN Stud Remover Tool Kit 8pc Stud Extractor Kit will effectively work on threaded, broken, rusted, stripped, and smooth studs for ultimate versatility; Includes smooth internal paws that push into the fastener (more torque means greater applied force); No threads required
- FITS YOUR APPLICATION: Stud remover socket kit fits studs that are 1/4-inch to 7/16-inch (6mm to 12mm); Each socket has permanently etched size for quick identification; SAE 3/8-inch drive sockets – 1/4", 5/16"; SAE 1/2-inch sockets – 3/8", 7/16"; Metric 3/8-inch drive sockets – 6mm, 8mm; Metric 1/2-inch drive sockets – 10mm, 12mm
- USE YOUR TOOLS: Fits 3/8-inch and 1/2-inch impact wrench or ratcheting wrench (wrench not included); Reverse your ratchet to use as stud installer
- EASY STORAGE: Heavy-duty 8.6” x 4.6” x 2” inch (21.8cm x 11.7cm x 5.1cm) plastic blow-molded carrying case with latch for easy transportation, safe storage, and quick organization; Each compartment is permanently etched with sizing information for simple identification
- PACKAGE CONTENTS: Package includes (8) stud removal sockets – 1/4-inch, 5/16-inch, 3/8-inch, 7/16-inch, 6mm, 8mm, 10mm, 12mm and (1) carrying case for your convenience; 3/8-inch and 1/2-inch socket drives; Wrench required, not included
- For removing broken or seized studs, bolts from 1/4" to 3/4" diameter
- Knurled roller uses cam action to grasp stud firmly while minimizing damage
- For removing broken or seized studs, bolts and the like from 1/4 inch to 3/4 inch diameter
- Knurled roller uses cam action to grasp stud firmly while minimizing damage
- Use with 1/2-inch Drive Ratchet Handle or Flex Handle
Last update on 2024-04-22 / Affiliate links / Images from Amazon Product Advertising API
This product presentation was made with AAWP plugin.
SEOCONTENT-START
Recall Information Bulletin
No: C10114 Issued: 12/16/2020 NHTSA No: 20V646 Transport Canada No: 2020494 Re: Exhaust Studs Group: 15 Models: FE
RECALL CLAIM SUBMITTAL:
Reimbursement claims are filed through FALCON using the Field Fix claim type. Enter all requested information. The system will automatically apply the labor allowance. Please note: Any defective parts replaced while performing the stud tightening must be entered in the OEM parts section of the Field Fix claim during reimbursement submission.
Campaign Reimbursement
Campaign Number
Models
Allowances
Labor Description
Part Number
C1011430
FECZT
FEC7T
FEC9T
Labor Time
1.5 hour
Tighten exhaust studs
1) ML296166 1) ML296167 0-6) ML296164 0-6) ML296165
C1011440
FEC7T
Crew Cab
Labor Time
2.0 hours
Tighten exhaust studs
1) ML296166 1) ML296167 0-6) ML296164 0-6) ML296165
******************************************************************************************************
FUSO
December 18, 2020
l!\ITPORTANT SAFETY RECALL
IMPORTANT!’
MITSUBISHI FUSO
TRUCK OF AMERICA, Inc.
2015 Center Square Road
Logan Township, NJ 08085
(856) 467-4500
(856) 467-4695 Fax
❖ This is to inform you that your vehicle may contain ll defect that could affect the safety of a person.
❖ Please be advised that your 2019-2021 Model Year FECZT (FE130), FEC7T (FE160) or FEC9T (FE180) truck
referenced by VIN below is open for a safety recall rtiated toJnsufficieat tightening of the exhaust studs.
❖ MFTA urges that you schedule an appointment. with an Authorized Dealer or Parts and Service Center to
perform the recall, at no charge to you, as soon as possible. Refer to this Recall .Notification letter when
speaking with Dealer Service Department personnel.
SAFETY RE.CALL NOTIFICATION – C10114 – Exhaust Studs
TRANSPORT CANADA SAFETY RECALL – 2020-492
VEHICLE IDENTIFICATION NUMBER -4UZBWK1
Dear Mitsubishi Fuso Truck Owner:
This notice is sent to you In accordance with the requirements of the Motor Vehicle Safety Act.
Mitsubishi Fuso Truck of America, Inc. has decided that a defect, INhich relates to motor vehicle safety, exists in the exhaust stud
tightening process on certain 2019-2021 Model Year FECZT (FE1 30), FECTT (FE160) and FEC9T (FE180) Mitsubishi Fuso
trucks. On certain trucks, the exhaust pipe studs and nuts may not have been properly tightened. As a result, the exhaust pipe
connection could loosen over time and create an exhaust leak in the engine compartment. An exhaust leak in the engine
compartment could damage components and create the risk of a fire. If you hear any abnormal exhaust noise, or if any engine
warning lamps turn on, Mitsubishi Fuso recommends that you should safely exit the roadway and shut the engine off.
If you’re searching for a Dealer or
Parts and Service Center in your area,
try the ”Find a Dealer’ link at:
www.mitfuso.com
FUSO
Conn”””d oo lht bad<.
OWNERNEHICLE INFORMATION CHANGE
If this vehicle is no longer in your possession. or the address has changed, please make any
necessary changes and indicn.te the “REASON FOR CHANGE” in the check boxes provided.
If you make changes, please sign and date, detach, and return this prepaid business reply
post.card.
VIN4UZBWK1
Owner of Record: Owner/Address Correction:
REASON FOR CHANGE
0 Truck Exported O Truck Totalled O Truck Scrapped/Out of Service
0 Truck Stolen D Truck Sold O Owner Address Correction
Signature: ___ __ ~— – – – – – —
tMPORTANTt Sign 11nd dn-Y# this N.P/J’; M p,r11101i.11I d1a,~Btl$ urt: ·uot val/4 wit/WJlr ;,our 1/g,,tmtl’t.
Dale: __ / __ / _ _
The procedure will be completed at no cost to you when performed by an Authorized Dealer or Parts and Service Center. The
exhaust studs will be tightened to the proper specification and any damage resulting from loose studs will be repaired. The
scheduled time for repair is between approximately 1.5 hours.
Federal regulation requires that any vehicle lessor receiving this recall notice must forward a copy of this notice to the lessee
within ten days. If you are the lessor of the above referenced vehicle, please forward this notification immediately.
Note: If you have incurred costs to obtain a remedy for the problem addressed in this recall prior to initial notification, please
present the paid invoice to an Authorized Mitsubishi Fuso Dealer or Parts and Service Center. The Dealer/Parts & Service Center
will submit a warranty claim to MFTA on your behalf. Reimbursement of these costs should be expected within 30 da,ys of warranty
claim submittal.
We at MFTA regret any inconvenience this situation may cause you. However, your continued satisfaction with our product is most
important to us.
If your MFTA Dealer is unable to perform this procedure without charge, or within a reasonable amount of time, please contact
MFTA Customer Service toll-free at 877-711-0707 for assistance.
Sincerely,
Scott M. Coyle
Vice President, Service Operations
BUSINESS REPLY MAIL
FIRST -CLASS MAIL PERMIT NO. 8 SWEDESBORO, NJ
POSTAGE WILL BE PAID BY ADDRESSEE
MITSUBISHI FUSO TRUCK OF AM INC
2015 CENTER SQUARE RD
SWEDESBORO NJ 08085-9917
————–,
NO POSTAGE
NECESSARY
IF MAILED
INTHE
